Internal Grinding 500mm Dia x 500mm deep

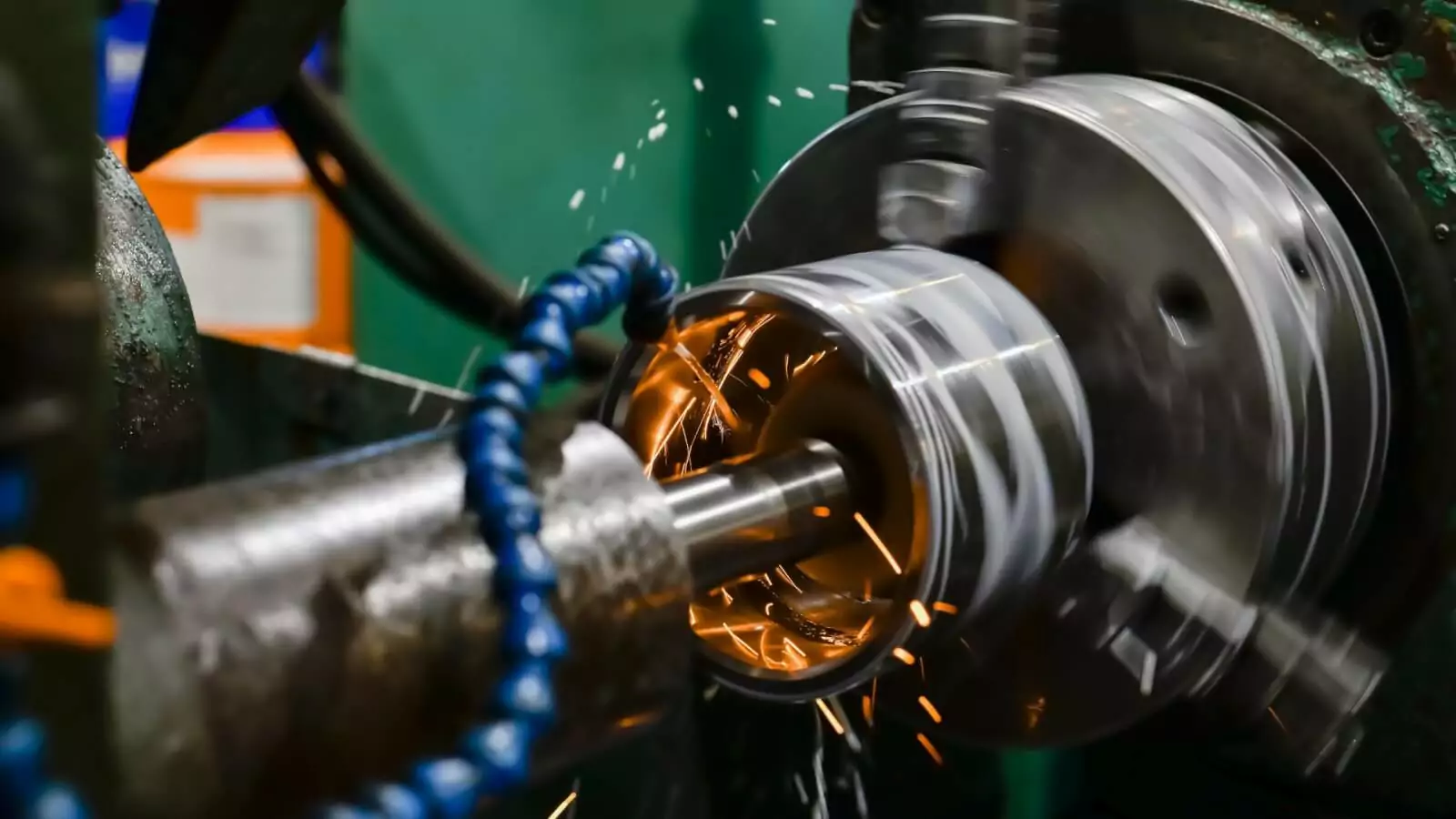

B&B Precision have dedicated Internal Grinding machines which allows us to grind intricate internal work including multi-diameter and tapered bores. We have in house capability to manufacture special jigs enabling us to hold items which would otherwise be difficult to hold in a chuck or on a permanent magnet.

Bores from 10mm (0.4″) up to 500mm (20″) in diameter can be ground up to 500mm (20”) deep. Internal Grinding ensures that the ground bores run true to the component face.

B&B have a CMM to check all critical dimensions and roundness and can produce bespoke inspection reports if required.

Grinding Capacity

Tschudin TL155U Universal Grinder: Max Diam 505mm x 1.5 metres long

Jones & Shipman Format 15 CNC Grinder: Max Diam 250mm x 70mm between centres

Jones & Shipman Uni Cylinder Grinder: Max Swing 300mm x 850mm between centres

Chruchill Cylindrical Grinder: Max Diam 508mm x 2800mm between centres with DROA

Jones & Shipman 540 Surface Grinder: 450mm x 150mm magnetic table

Snow Hydraulic Horizontal Surface Grinder: Max Diam 310mm x 76mm Bar

Thompson Surface Grinder: 500 x 500 x 250mm magnetic chuck with demagnetiser
